Skip Containers (Absetzmulden)
Skip containers (Absetzcontainer) to DIN 30720 — volumes from 3 to 15 m³. Open, roofed and ULB designs in light and heavy rolled profiles. Asymmetric and symmetric construction, built to your application.
Description and Use
Skip containers — Absetzcontainer — are compact containers designed for skip-loader vehicles. We manufacture them primarily from standard structural steel S235JR+N and S355JR+N. For more demanding operations we also use high-strength steels / Alform® and wear-resistant Durostat® 400/450/500 by voestalpine.
They are used primarily in construction, waste management, secondary raw material collection and the municipal sector. Volumes from 3 to 15 m³.
We manufacture open skips from light and heavy rolled profiles. For specific requirements we also offer watertight versions for sludge and liquid waste, both in asymmetric and symmetric design.
Design Variants

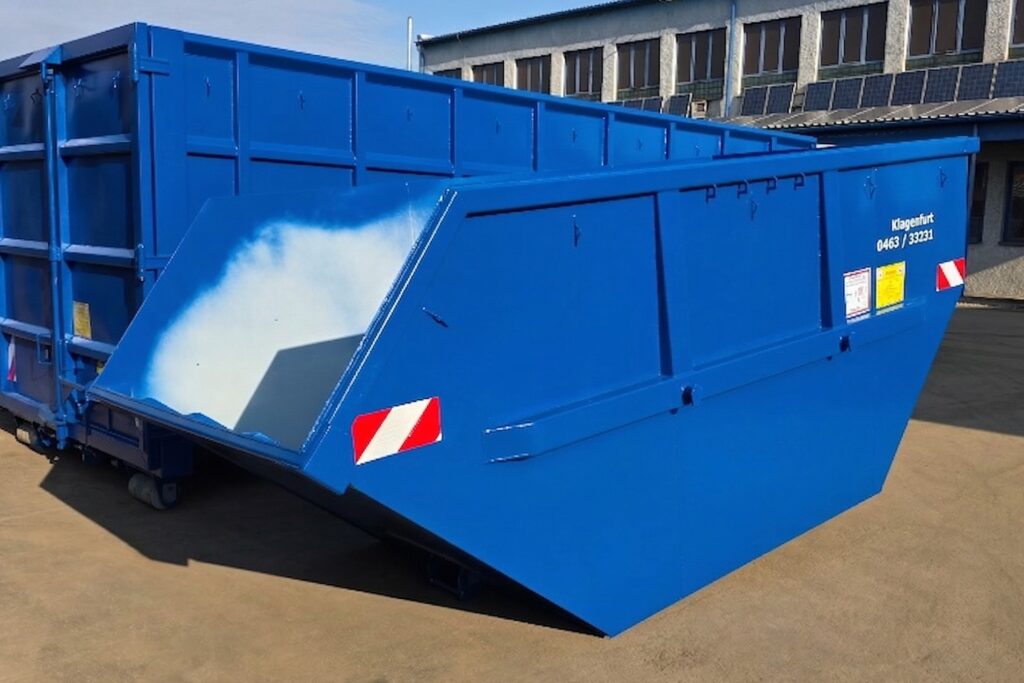

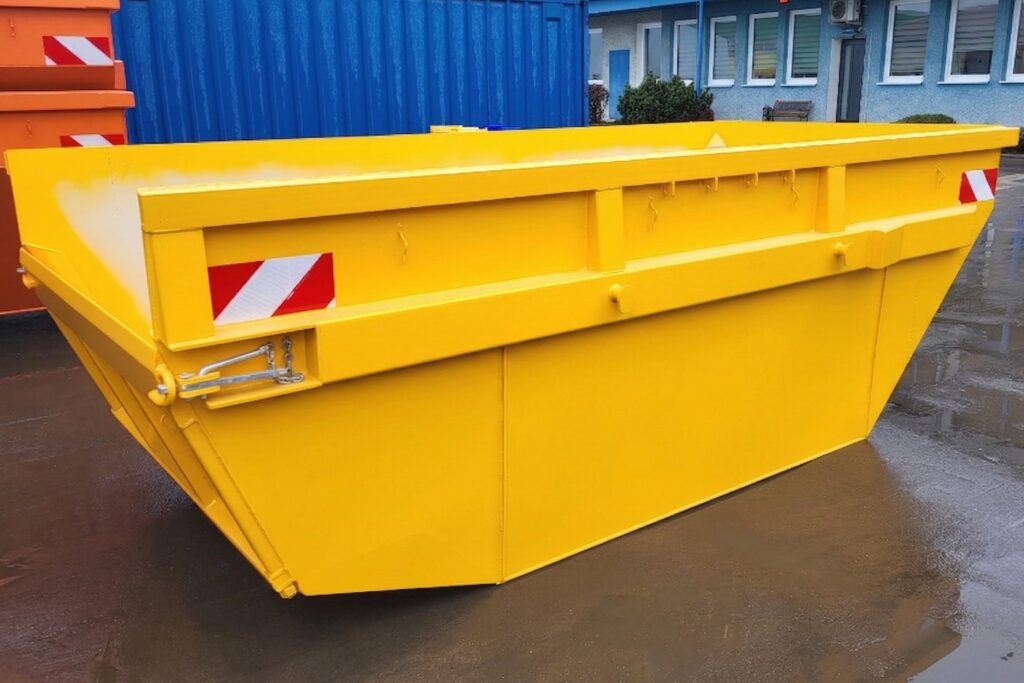

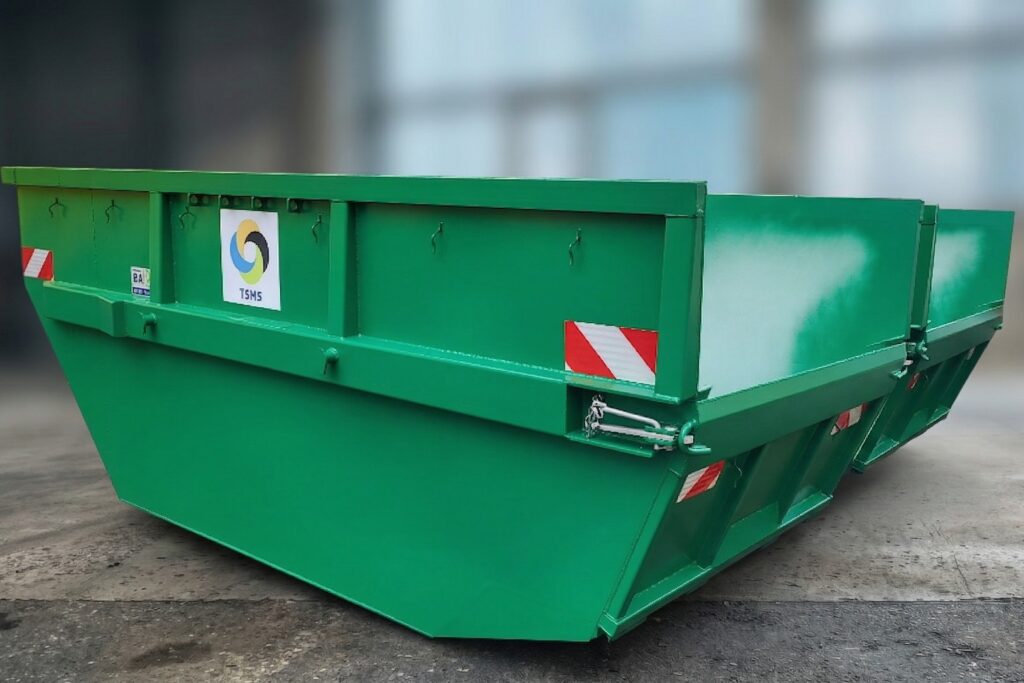

Open Open Skips
Standard design for bulk materials, construction waste and recycling. Available in light and heavy rolled profiles. The asymmetric design enables better emptying during one-sided lifting, the symmetric ensures even load distribution.
Light profilesHeavy profilesAsymmetricSymmetricWatertight (for sludge)

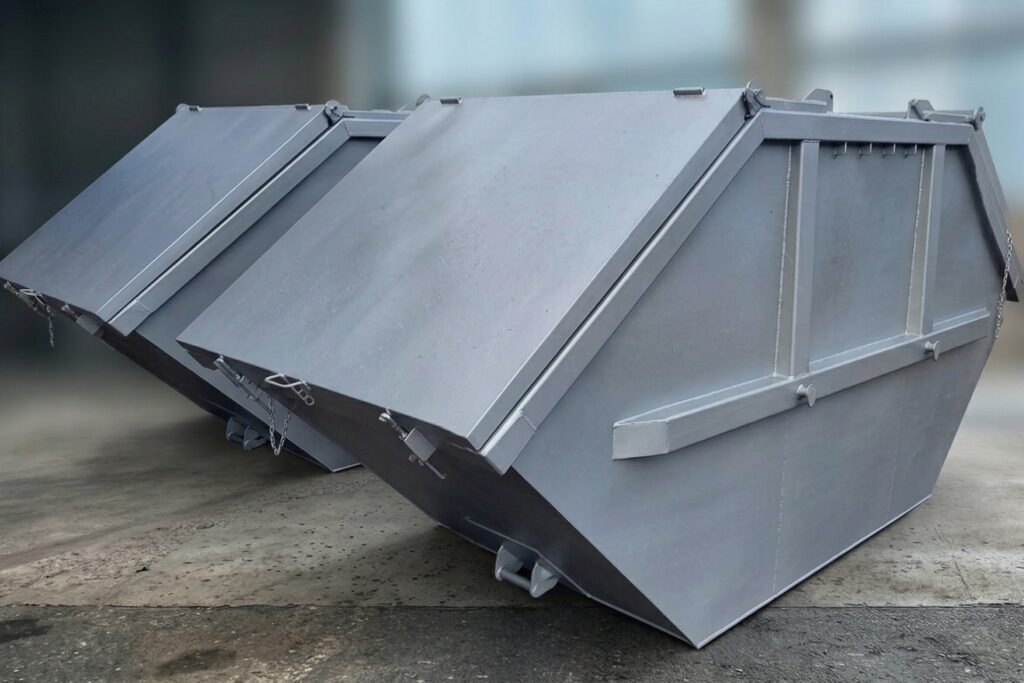

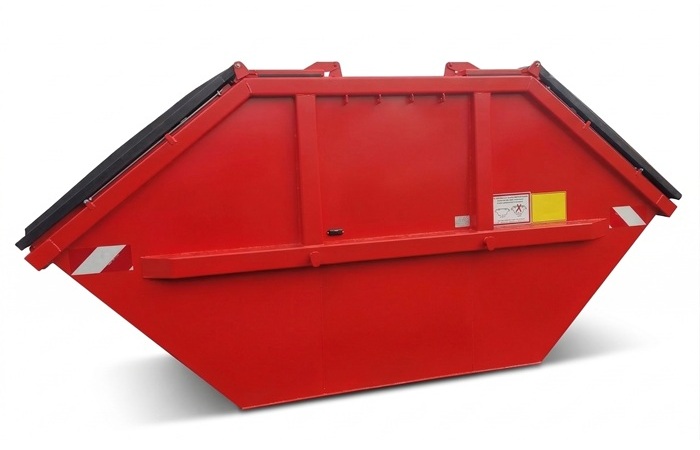

Roofed Roofed Skips
Skips with fixed or openable roof. Suitable for municipal waste, paper and textiles. The roof protects content from rain and reduces dispersion of light materials.
Steel (SD)Plastic (KD)Aluminum cover (ALU)
ULB ULB Skips
Skips in ULB design (Umleerbehälter) are constructed for mechanized emptying. Used in combination with compactor vehicles and collection systems. The robust construction ensures long service life under repeated cyclic loading.
OpenPlasticAluminum cover
Standards
| Standard | Description |
|---|---|
| DIN 30720 | Standard for skip containers, attachment and dimensions |
Skip Equipment
✔ Standard Configuration
• 3× L-profiles inside the skip
• Reflective foils per DIN 30710
• Sandblasting SA 2,5 (EN ISO 8501-1) + primer + RAL topcoat
⊕ Optional Equipment
• 4× drain hole
• Twist lock (triple lock)
• Logo and lettering to your specification
• Watertight design
Colours and Surface Treatment
All skips are standard shot-blasted to SA 2.5 quality, painted inside and outside with primer and outside with topcoat at over 100 μm thickness.
Topcoat colour per RAL sample card — any colour per customer’s choice.
